The following sections show specific scenarios of v3 attachment violations:

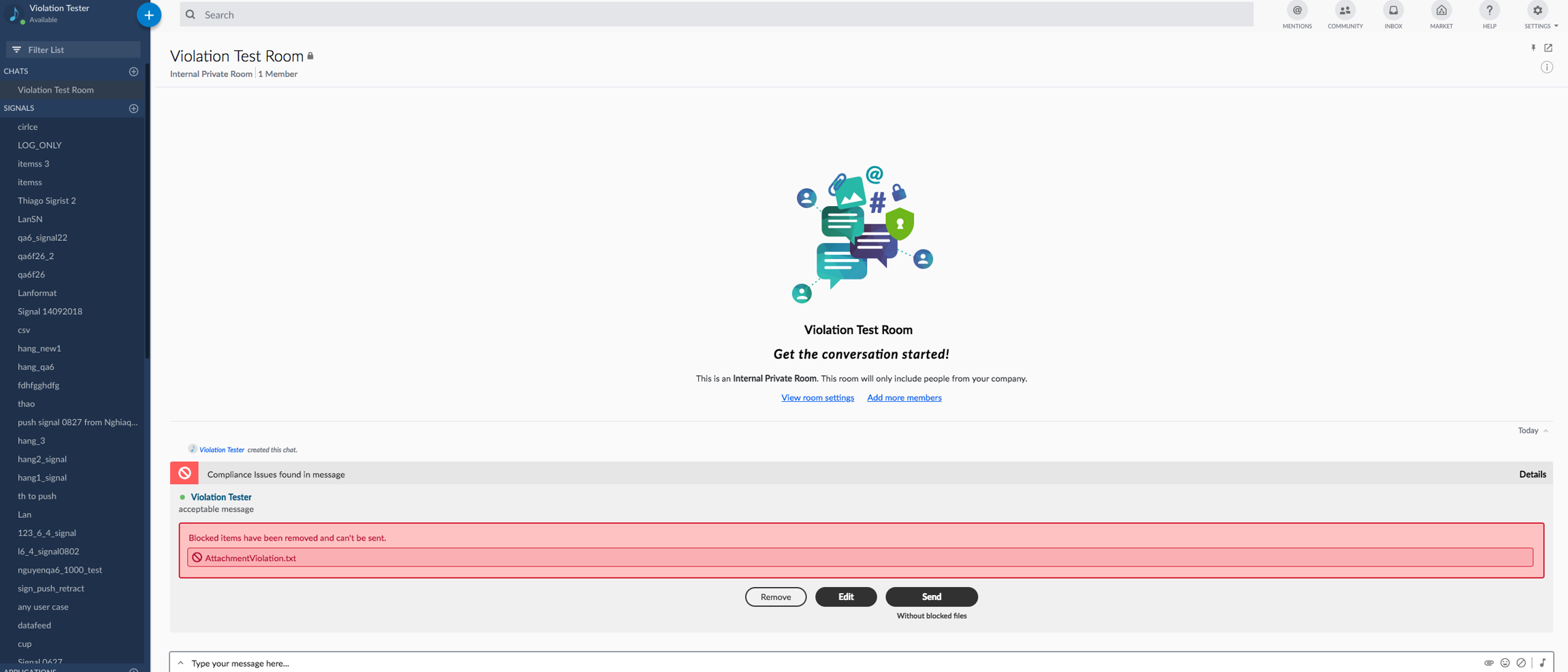

This is an example of when one attachments generates multiple violations. There are multiple "policyResults" that specify different violations.
{
"violations": [
{
"violation": {
"enforcementEventID": "MESSAGE-U3B1SddxrrKg00K9+UjKK3///pk+LUfZbQ==-1540850105545",
"entityID": "U3B1SddxrrKg00K9-UjKK3___pk-LUfZbQ",
"createTime": 1540850105545,
"lastModified": 0,
"requesterId": 7696581544487,
"details": [
{
"status": "OK",
"correlationId": "TEXT"
},
{
"status": "OK",
"correlationId": "ENCRYPTED_MEDIA",
"attributeType": "MEDIA"
},
{
"status": "OK",
"correlationId": "FILENAME_internal_7696581544487%2FK%2BjNOjComLjsHtygpAbsPQ%3D%3D",
"attributeType": "ATTACHMENT_NAME",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"name": "AttachmentViolation.txt"
}
}
}
},
{
"status": "BLOCK",
"policyResults": [
{
"status": "BLOCK",
"matchedPolicy": {
"id": "5b3332398dd2a6692833cb4f",
"version": "1.23",
"name": "HNregex Mes&File x\ufffda p?i h?i"
},
"ruleResults": [
{
"ruleInstanceId": "b142eb5f-43e0-4708-9ce3-1a50f694f722",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "TEXT_MATCH",
"ruleName": "",
"ruleDescription": "Rule file content matched"
},
"fileContent": {
"dictionary": {
"id": "5ac47902cc270c305180c638",
"version": "1.2"
},
"matches": [
{
"match": "Green",
"matchPattern": "",
"count": 1
}
]
}
}
}
}
]
},
{
"status": "BLOCK",
"matchedPolicy": {
"id": "5b7689c18dd2a623259abf48",
"version": "1.1",
"name": "Chey"
},
"ruleResults": [
{
"ruleInstanceId": "352d6702-3437-4b26-9afc-8fff32bfb252",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "TEXT_MATCH",
"ruleName": "",
"ruleDescription": "Rule file content matched"
},
"fileContent": {
"dictionary": {
"id": "5b67f44e1cd27a3d4e65c1da",
"version": "1.1"
},
"matches": [
{
"match": "Testing",
"matchPattern": "",
"count": 1
}
]
}
}
}
}
]
},
{
"status": "LOGONLY",
"matchedPolicy": {
"id": "5ad74c811cd27a4e906c64f4",
"version": "1.7",
"name": "EFv3 Warn Policy"
},
"ruleResults": [
{
"ruleInstanceId": "848b624f-1dfe-421f-9ef4-103476db7036",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "TEXT_MATCH",
"ruleName": "",
"ruleDescription": "Rule file content matched"
},
"fileContent": {
"dictionary": {
"id": "5a95b20bcc270c62c5fc60e1",
"version": "1.4"
},
"matches": [
{
"match": "Yellow",
"matchPattern": "",
"count": 1
}
]
}
}
}
}
]
}
],
"correlationId": "ATTACHMENT_internal_7696581544487%2FK%2BjNOjComLjsHtygpAbsPQ%3D%3D",
"attributeType": "ATTACHMENT",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"sizeInBytes": "119",
"contentType": "text/plain",
"name": "AttachmentViolation.txt",
"fileId": "internal_7696581544487%2FK%2BjNOjComLjsHtygpAbsPQ%3D%3D",
"encrypted": true
}
}
}
}
],
"action": "BLOCK",
"outcome": {
"type": "REJECTED_VIOLATION"
},
"version": "V3",
"ignoreDLPwarning": false
},
"message": {
"messageId": "U3B1SddxrrKg00K9-UjKK3___pk-LUfZbQ",
"timestamp": 1540850104358,
"message": "acceptable message",
"data": "{}",
"attachments": [
{
"id": "internal_7696581544487%2FK%2BjNOjComLjsHtygpAbsPQ%3D%3D",
"name": "AttachmentViolation.txt",
"size": 119,
"images": []
}
],
"user": {
"userId": 7696581544487,
"firstName": "Violation",
"lastName": "Tester",
"displayName": "Violation Tester",
"email": "violation@test.com",
"username": "dlp_violation_tester"
},
"stream": {
"streamId": "Sr6kRRVqkbc0GsUJnFYGan___pk-QD8MdA",
"streamType": "ROOM"
},
"externalRecipients": false,
"userAgent": "DESKTOP-37.0.0-6833-MacOSX-10.12.6-Chrome-69.0.3497.100",
"originalFormat": "com.symphony.messageml.v2"
}
}
],
"nextOffset": ""

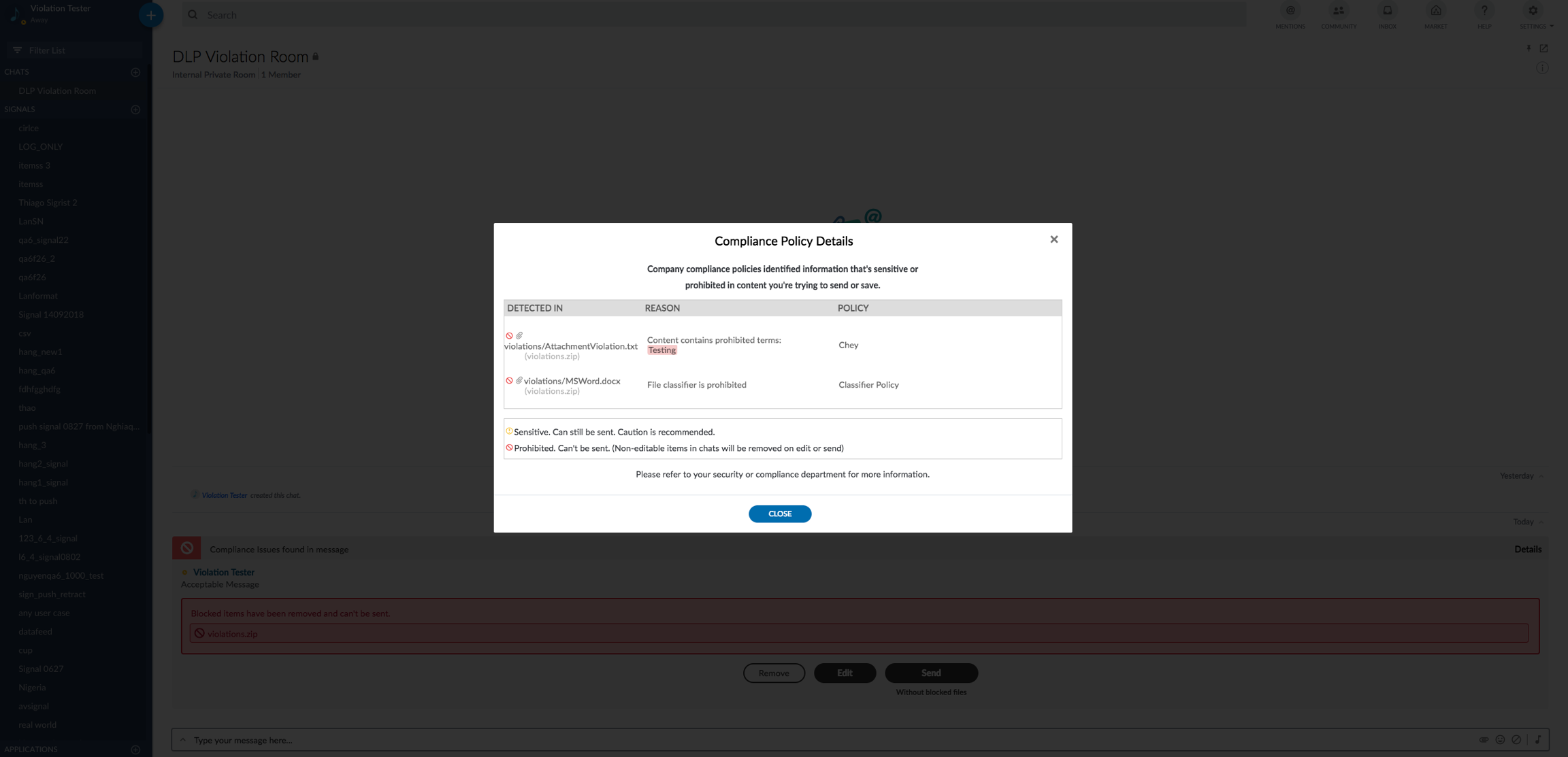

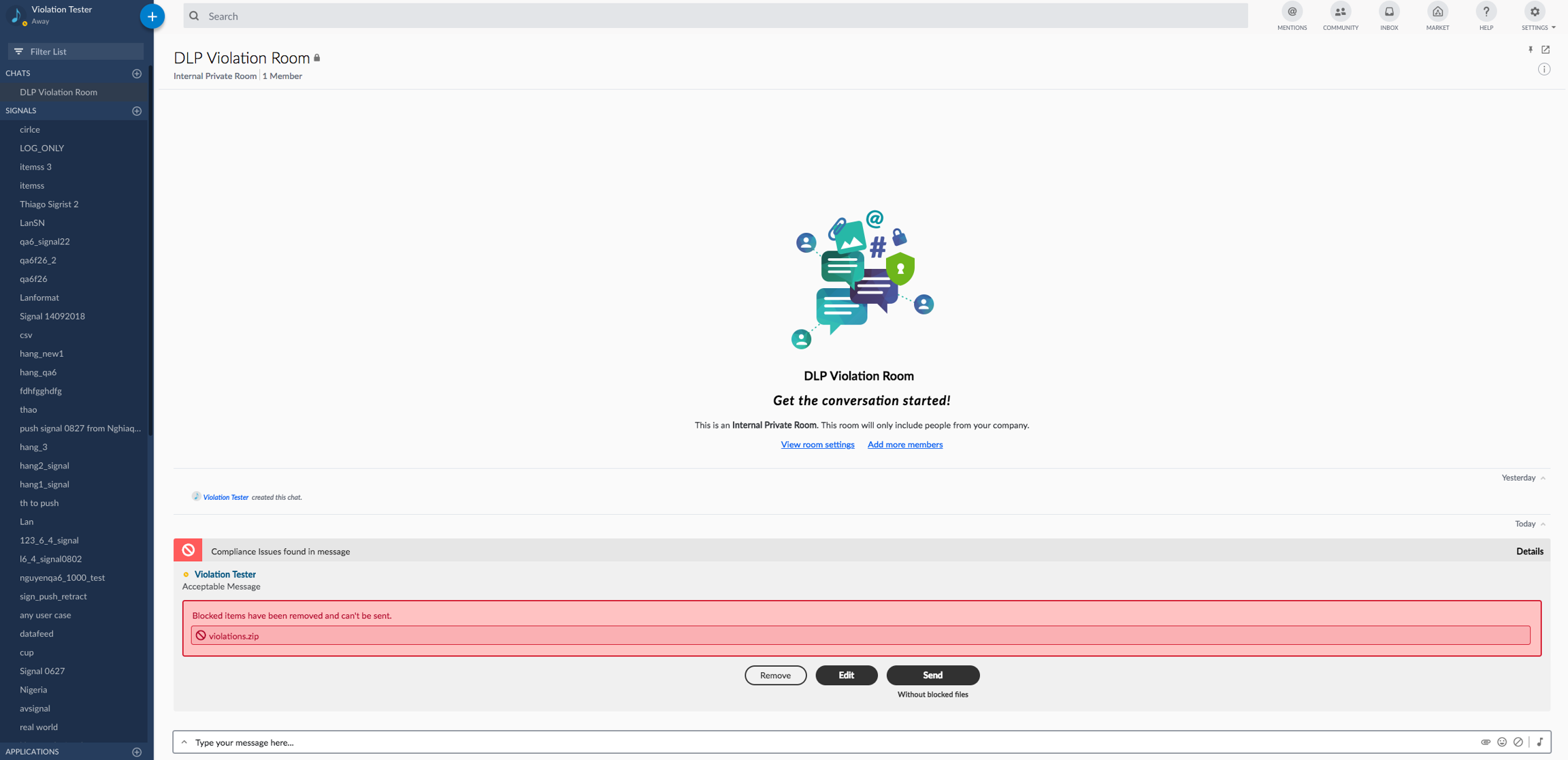

}This is an example of a violation on a zip file attachment and the internal files that compose it. All rules will be applied to the top-level zip file. The sub files will also be extracted from the zip file and all applicable rules are run against each of them. If a "containerName" field is present, then it refers to a violation on a sub file. The "containerName" refers to the name of the zip file that contains the violating file. The system does not allow zip files within zip files. If a user attempts to attach a zip file that contains a zip file, the system will throw an error back to the user but will not record any violation.
{
"violations": [{
"violation": {
"enforcementEventID": "MESSAGE-vX9ezEUcumtssEervGxz7n///pk1IhzQbQ==-1541001831569",
"entityID": "vX9ezEUcumtssEervGxz7n___pk1IhzQbQ",
"createTime": 1541001831569,
"lastModified": 0,
"requesterId": 7696581544487,
"details": [
{
"status": "OK",
"correlationId": "TEXT"
},
{
"status": "OK",
"correlationId": "ENCRYPTED_MEDIA",
"attributeType": "MEDIA"
},
{
"status": "OK",
"correlationId": "FILENAME_internal_7696581544487%2F1tQppbKTK%2FnvdtRo%2F1OdAg%3D%3D",
"attributeType": "ATTACHMENT_NAME",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"name": "violations.zip"
}
}
}
},
{
"status": "OK",
"correlationId": "ATTACHMENT_internal_7696581544487%2F1tQppbKTK%2FnvdtRo%2F1OdAg%3D%3D",
"attributeType": "ATTACHMENT",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"sizeInBytes": "9720",
"contentType": "application/zip",
"name": "violations.zip",
"fileId": "internal_7696581544487%2F1tQppbKTK%2FnvdtRo%2F1OdAg%3D%3D",
"encrypted": true
}
}
}
},
{
"status": "BLOCK",
"policyResults": [
{
"status": "BLOCK",
"matchedPolicy": {
"id": "5b7689c18dd2a623259abf48",
"version": "1.1",
"name": "Chey"
},
"ruleResults": [
{
"ruleInstanceId": "352d6702-3437-4b26-9afc-8fff32bfb252",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "TEXT_MATCH",
"ruleName": "",
"ruleDescription": "Rule file content matched"
},
"fileContent": {
"dictionary": {
"id": "5b67f44e1cd27a3d4e65c1da",
"version": "1.1"
},
"matches": [
{
"match": "Testing",
"matchPattern": "",
"count": 1
}
]
}
}
}
}
]
}
],
"correlationId": "ATTACHMENT_internal_7696581544487%2F1tQppbKTK%2FnvdtRo%2F1OdAg%3D%3D",
"attributeType": "ATTACHMENT",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"sizeInBytes": "9720",
"contentType": "application/zip",
"name": "violations/AttachmentViolation.txt",
"fileId": "internal_7696581544487%2F1tQppbKTK%2FnvdtRo%2F1OdAg%3D%3D",
"encrypted": true,
"containerName": "violations.zip"
}
}
}
},
{
"status": "OK",
"attributeType": "ATTACHMENT_NAME",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"name": "violations/AttachmentViolation.txt",
"containerName": "violations.zip"
}
}
}
},
{
"status": "BLOCK",
"policyResults": [
{
"status": "BLOCK",
"matchedPolicy": {
"id": "5bd87ea28dd2a61a68af5ec4",
"version": "1.1",
"name": "Classifier Policy"
},
"ruleResults": [
{
"ruleInstanceId": "496bfecf-e0a2-4d68-a835-879be99322a2",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "FILE_CLASSIFIER",
"ruleName": "",
"ruleDescription": "Rule classifier matched"
},
"classifiers": {
"matchedPair": {
"custom:CustomProperty": "symproxy"
}
}
}
}
}
]
}
],
"correlationId": "ATTACHMENT_internal_7696581544487%2F1tQppbKTK%2FnvdtRo%2F1OdAg%3D%3D",
"attributeType": "ATTACHMENT",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"sizeInBytes": "9720",
"contentType": "application/zip",
"name": "violations/MSWord.docx",
"fileId": "internal_7696581544487%2F1tQppbKTK%2FnvdtRo%2F1OdAg%3D%3D",
"encrypted": true,
"containerName": "violations.zip"
}
}
}
},
{
"status": "OK",
"attributeType": "ATTACHMENT_NAME",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"name": "violations/MSWord.docx",
"containerName": "violations.zip"
}
}
}
}
],
"action": "BLOCK",
"outcome": {
"type": "REJECTED_VIOLATION"
},
"version": "V3",
"ignoreDLPwarning": false
},
"message": {
"messageId": "vX9ezEUcumtssEervGxz7n___pk1IhzQbQ",
"timestamp": 1541001831215,
"message": "Acceptable Message",
"data": "{}",
"attachments": [
{
"id": "internal_7696581544487%2F1tQppbKTK%2FnvdtRo%2F1OdAg%3D%3D",
"name": "violations.zip",
"size": 9720,
"images": []
}
],
"user": {
"userId": 7696581544487,
"firstName": "Violation",
"lastName": "Tester",
"displayName": "Violation Tester",
"email": "violation@test.com",
"username": "dlp_violation_tester"
},
"stream": {
"streamId": "s2KV8m8xTq0YENFoxslRzX___pk6aTRhdA",
"streamType": "ROOM"
},
"externalRecipients": false,
"userAgent": "DESKTOP-37.0.0-6838-MacOSX-10.12.6-Chrome-70.0.3538.77",
"originalFormat": "com.symphony.messageml.v2"
}
}],
"nextOffset": ""

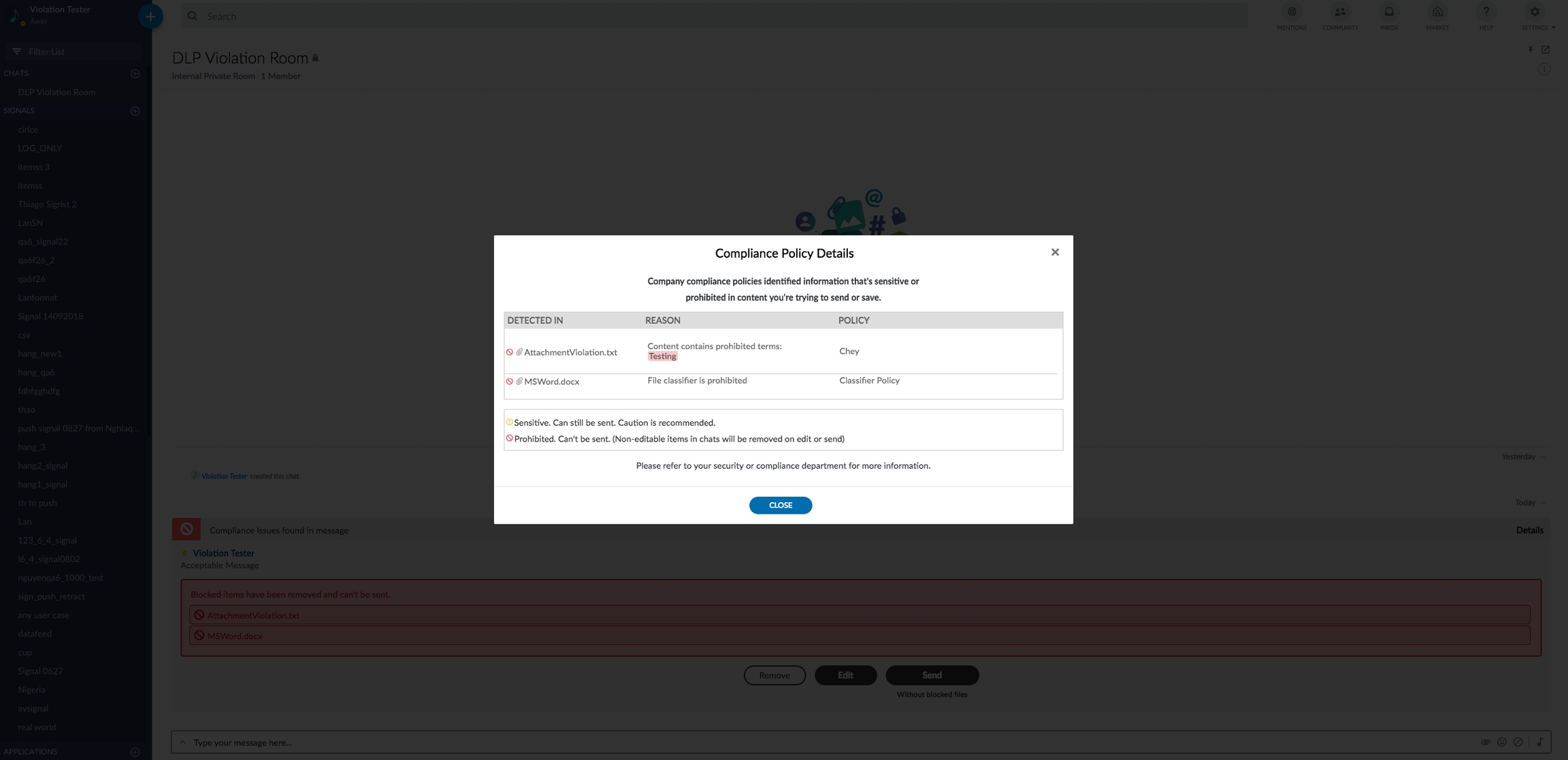

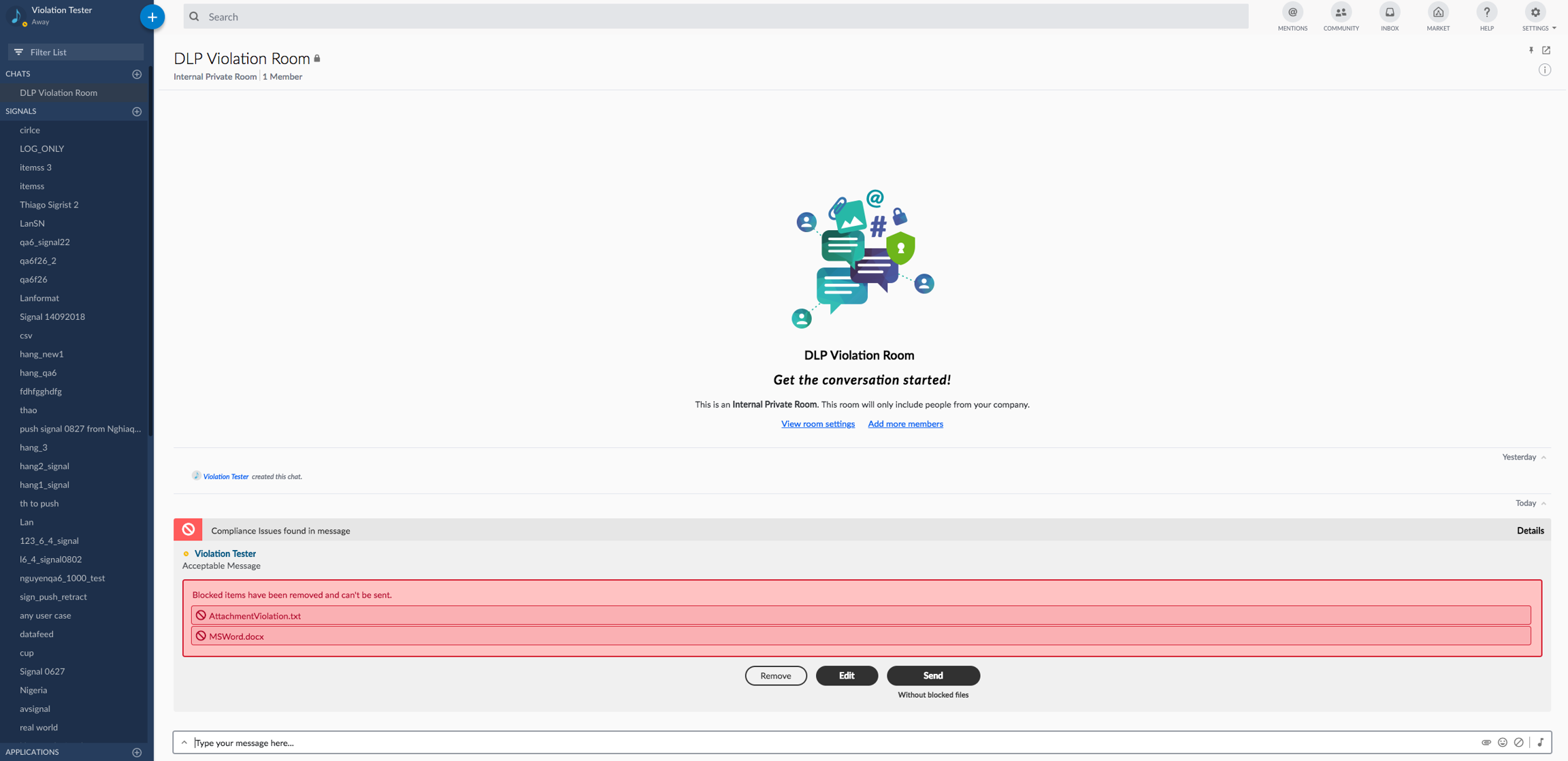

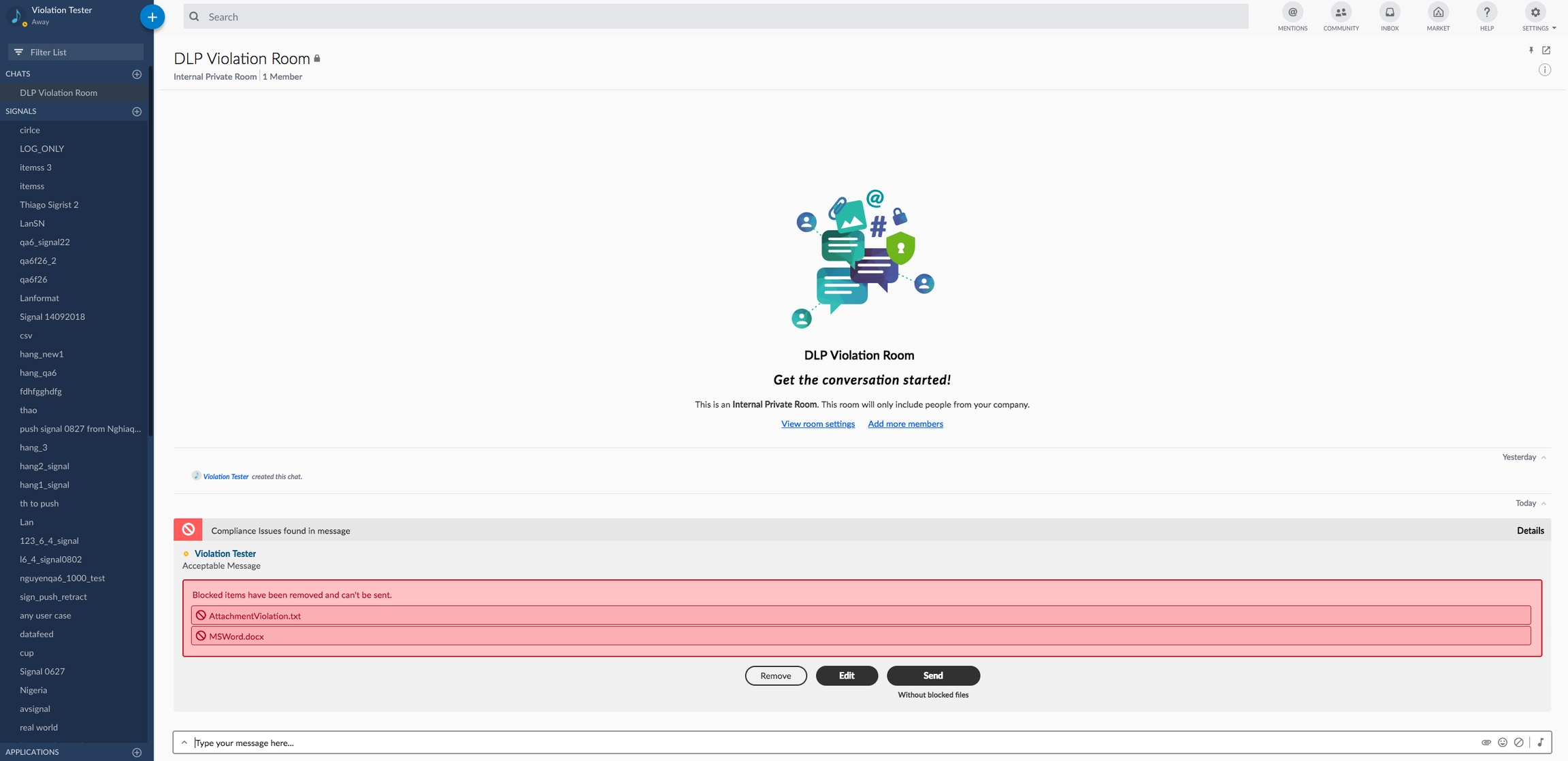

}This is an example of when multiple attachments are included in the message and each of them generates a violation. If one attachment matches a policy, then the entire request will be trigger the policy action. There are multiple "policyResults" that specify different violations and the "correlationId" specifies which attachment the violation refers to.
{
"violations": [
{
"violation": {
"enforcementEventID": "MESSAGE-9a0RsH4lFBN1Qq1FmwAaQ3///pk1IHEmbQ==-1541001941570",
"entityID": "9a0RsH4lFBN1Qq1FmwAaQ3___pk1IHEmbQ",
"createTime": 1541001941570,
"lastModified": 0,
"requesterId": 7696581544487,
"details": [
{
"status": "OK",
"correlationId": "TEXT"
},
{
"status": "OK",
"correlationId": "ENCRYPTED_MEDIA",
"attributeType": "MEDIA"
},
{
"status": "OK",
"correlationId": "FILENAME_internal_7696581544487%2FmU95LVtBeO67ZZ6LwQKzYg%3D%3D",
"attributeType": "ATTACHMENT_NAME",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"name": "AttachmentViolation.txt"
}
}
}
},
{
"status": "BLOCK",
"policyResults": [
{
"status": "BLOCK",
"matchedPolicy": {
"id": "5b7689c18dd2a623259abf48",
"version": "1.1",
"name": "Chey"
},
"ruleResults": [
{
"ruleInstanceId": "352d6702-3437-4b26-9afc-8fff32bfb252",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "TEXT_MATCH",
"ruleName": "",
"ruleDescription": "Rule file content matched"
},
"fileContent": {
"dictionary": {
"id": "5b67f44e1cd27a3d4e65c1da",
"version": "1.1"
},
"matches": [
{
"match": "Testing",
"matchPattern": "",
"count": 1
}
]
}
}
}
}
]
}
],
"correlationId": "ATTACHMENT_internal_7696581544487%2FmU95LVtBeO67ZZ6LwQKzYg%3D%3D",
"attributeType": "ATTACHMENT",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"sizeInBytes": "101",
"contentType": "text/plain",
"name": "AttachmentViolation.txt",
"fileId": "internal_7696581544487%2FmU95LVtBeO67ZZ6LwQKzYg%3D%3D",
"encrypted": true
}
}
}
},
{
"status": "OK",
"correlationId": "FILENAME_internal_7696581544487%2FULmlunyCEg710wlS3Jugxg%3D%3D",
"attributeType": "ATTACHMENT_NAME",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"name": "MSWord.docx"
}
}
}
},
{
"status": "BLOCK",
"policyResults": [
{
"status": "BLOCK",
"matchedPolicy": {
"id": "5bd87ea28dd2a61a68af5ec4",
"version": "1.1",
"name": "Classifier Policy"
},
"ruleResults": [
{
"ruleInstanceId": "496bfecf-e0a2-4d68-a835-879be99322a2",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "FILE_CLASSIFIER",
"ruleName": "",
"ruleDescription": "Rule classifier matched"
},
"classifiers": {
"matchedPair": {
"custom:CustomProperty": "symproxy"
}
}
}
}
}
]
}
],
"correlationId": "ATTACHMENT_internal_7696581544487%2FULmlunyCEg710wlS3Jugxg%3D%3D",
"attributeType": "ATTACHMENT",
"secureAttachmentMeta": {
"complianceMeta": {
"detail": {
"sizeInBytes": "9052",
"contentType": "application/vnd.openxmlformats-officedocument.wordprocessingml.document",
"name": "MSWord.docx",
"fileId": "internal_7696581544487%2FULmlunyCEg710wlS3Jugxg%3D%3D",
"encrypted": true
}
}
}
}
],
"action": "BLOCK",
"outcome": {
"type": "REJECTED_VIOLATION"
},
"version": "V3",
"ignoreDLPwarning": false
},
"message": {
"messageId": "9a0RsH4lFBN1Qq1FmwAaQ3___pk1IHEmbQ",
"timestamp": 1541001940697,
"message": "Acceptable Message",
"data": "{}",
"attachments": [
{
"id": "internal_7696581544487%2FmU95LVtBeO67ZZ6LwQKzYg%3D%3D",
"name": "AttachmentViolation.txt",
"size": 101,
"images": []
},
{
"id": "internal_7696581544487%2FULmlunyCEg710wlS3Jugxg%3D%3D",
"name": "MSWord.docx",
"size": 9052,
"images": []
}
],
"user": {
"userId": 7696581544487,
"firstName": "Violation",
"lastName": "Tester",
"displayName": "Violation Tester",
"email": "violation@test.com",
"username": "dlp_violation_tester"
},
"stream": {
"streamId": "s2KV8m8xTq0YENFoxslRzX___pk6aTRhdA",
"streamType": "ROOM"
},
"externalRecipients": false,
"userAgent": "DESKTOP-37.0.0-6838-MacOSX-10.12.6-Chrome-70.0.3538.77",
"originalFormat": "com.symphony.messageml.v2"
}
}
],
"nextOffset": ""

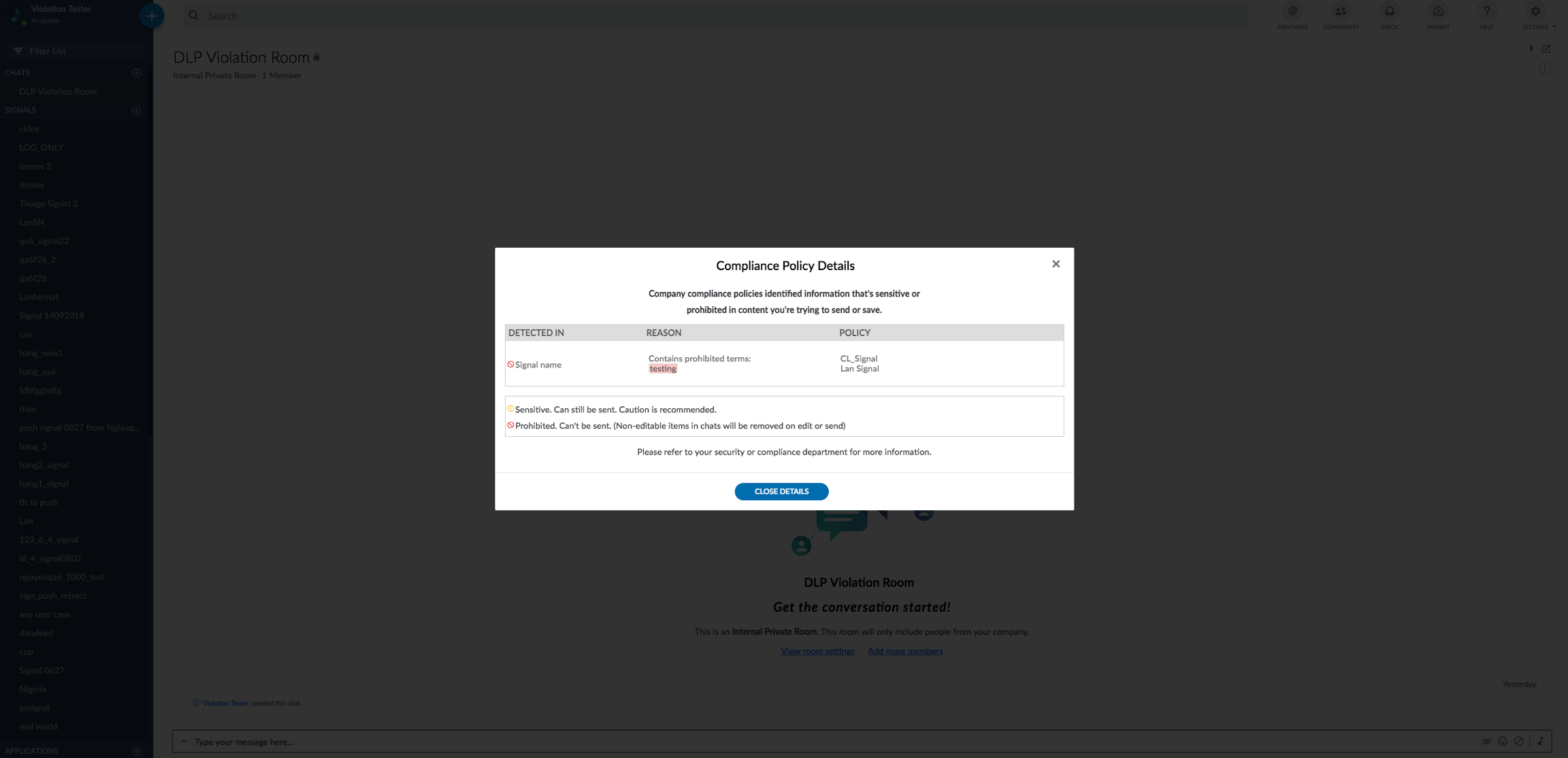

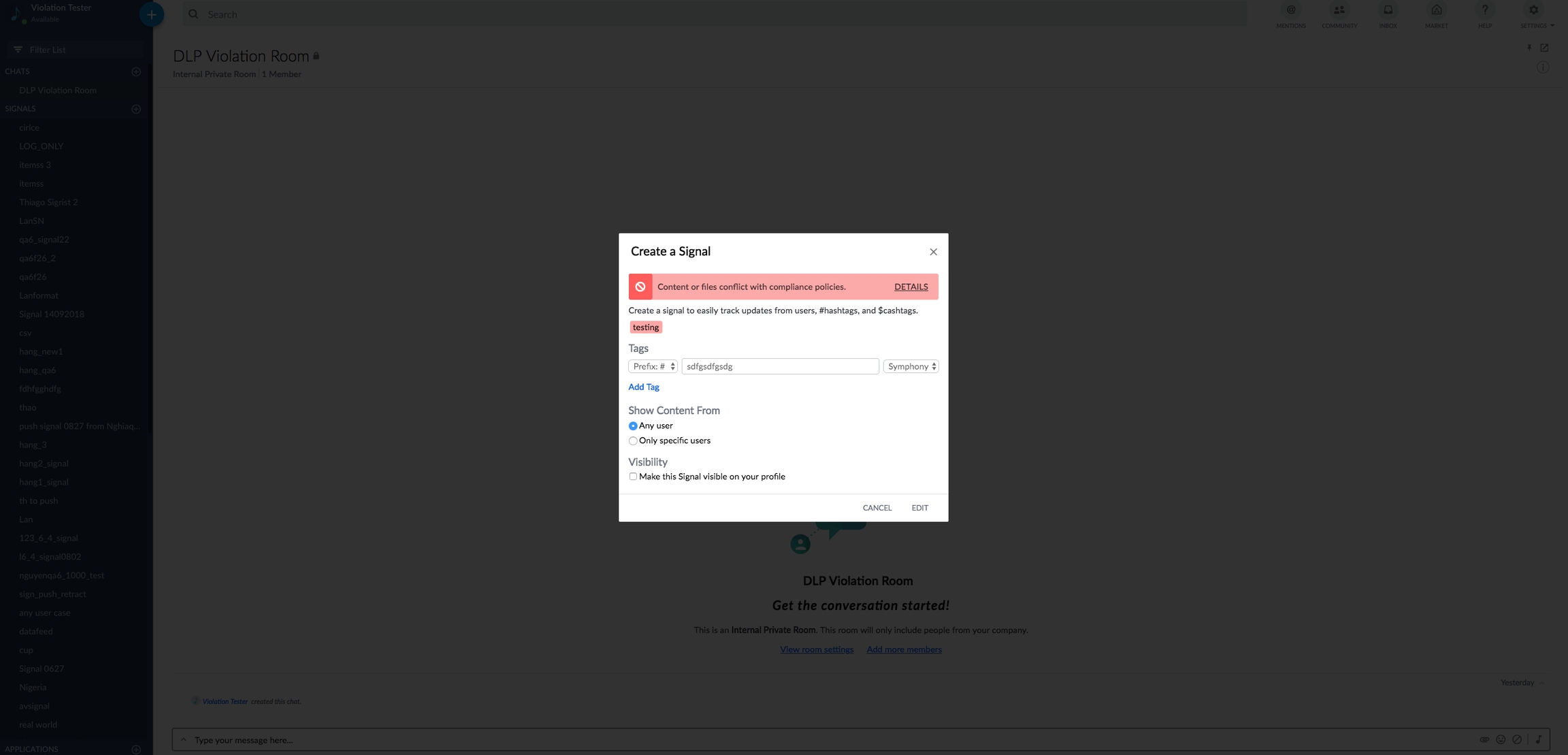

}EFv3 will enforce Signal Metadata Content Policies on a signals name when the signal is either created or updated. In the JSON structure below, the signal data can be viewed in the "signal" structure. The specific word or partial word that caused the violation can be seen in the path "policyResults" → "ruleResults" → "complianceDetail" → "detail" → "matches".
{
"violations": [{
"violation": {
"enforcementEventID": "SIGNAL-5bd9d4038dd2a61a68af5ef8-1541002243259",
"entityID": "5bd9d4038dd2a61a68af5ef8",
"createTime": 1541002243259,
"lastModified": 0,
"requesterId": 7696581544487,
"details": [
{
"status": "BLOCK",
"policyResults": [
{
"status": "BLOCK",
"matchedPolicy": {
"id": "5b6a62dccc270c1ed9754adc",
"version": "1.0",
"name": "CL_Signal"
},
"ruleResults": [
{
"ruleInstanceId": "586829b5-97d6-404f-93a7-97e593ce3ec1",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "TEXT_MATCH",
"ruleName": "",
"ruleDescription": "Rule text match matched"
},
"content": {
"dictionary": {
"id": "5b67f44e1cd27a3d4e65c1da",
"version": "1.1"
},
"matches": [
{
"offsetStart": 0,
"offsetEnd": 7,
"match": "testing",
"matchPattern": ""
}
]
}
}
}
}
]
},
{
"status": "BLOCK",
"matchedPolicy": {
"id": "5b9f4c028dd2a66dbc148bbb",
"version": "1.3",
"name": "Lan Signal"
},
"ruleResults": [
{
"ruleInstanceId": "40e6671c-a2bb-4211-a65e-898e945ff469",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "TEXT_MATCH",
"ruleName": "",
"ruleDescription": "Rule text match matched"
},
"content": {
"dictionary": {
"id": "5b67f44e1cd27a3d4e65c1da",
"version": "1.1"
},
"matches": [
{
"offsetStart": 0,
"offsetEnd": 7,
"match": "testing",
"matchPattern": ""
}
]
}
}
}
}
]
}
],
"correlationId": "SIGNAL_NAME",
"attributeType": "SIGNAL_NAME"
}
],
"action": "BLOCK",
"outcome": {
"type": "REJECTED_VIOLATION"
},
"version": "V3",
"ignoreDLPwarning": false
},
"signal": {
"name": "testing",
"rules": "#sdfgsdfgsdg"
}
}],
"nextOffset": ""

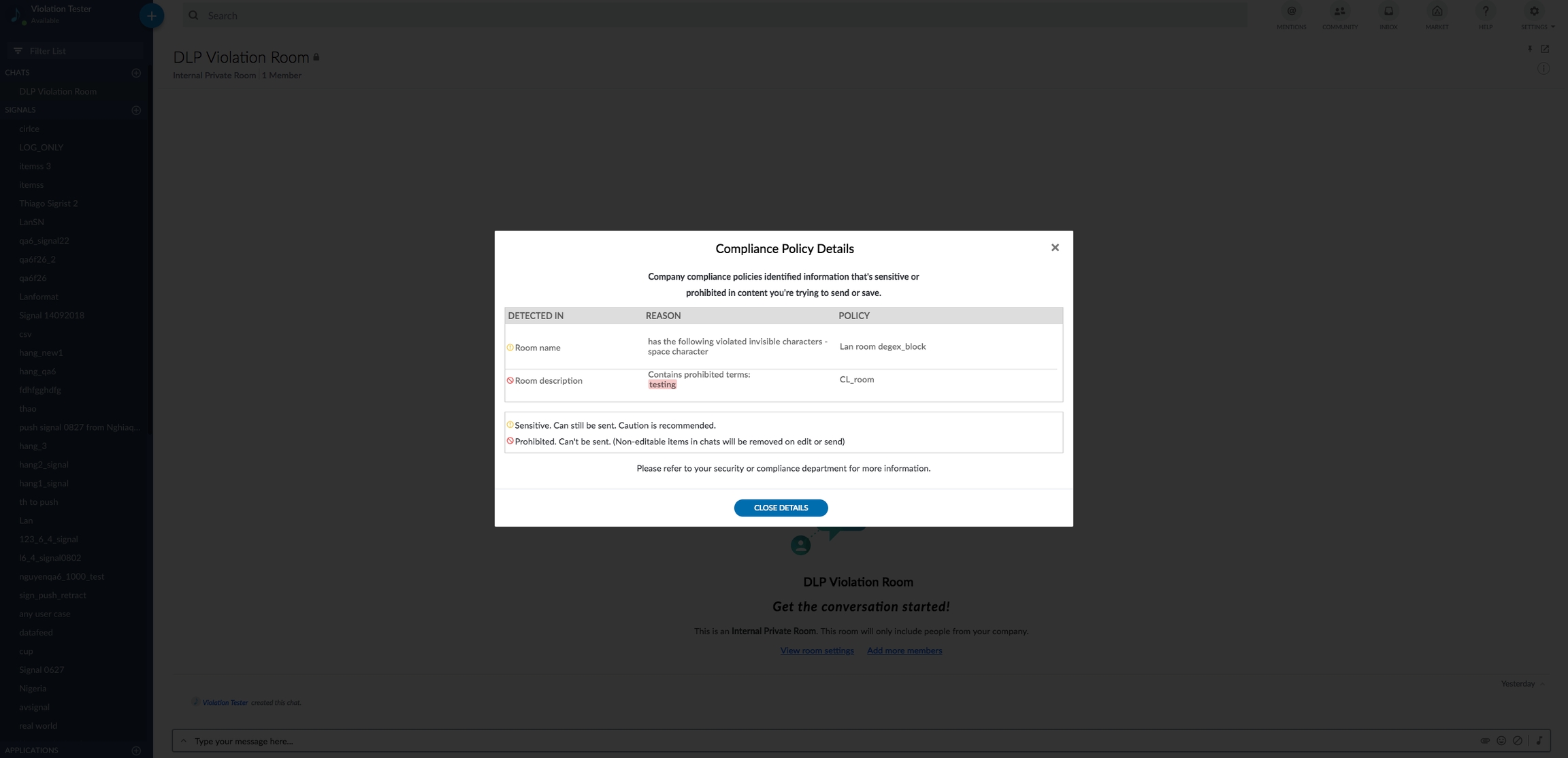

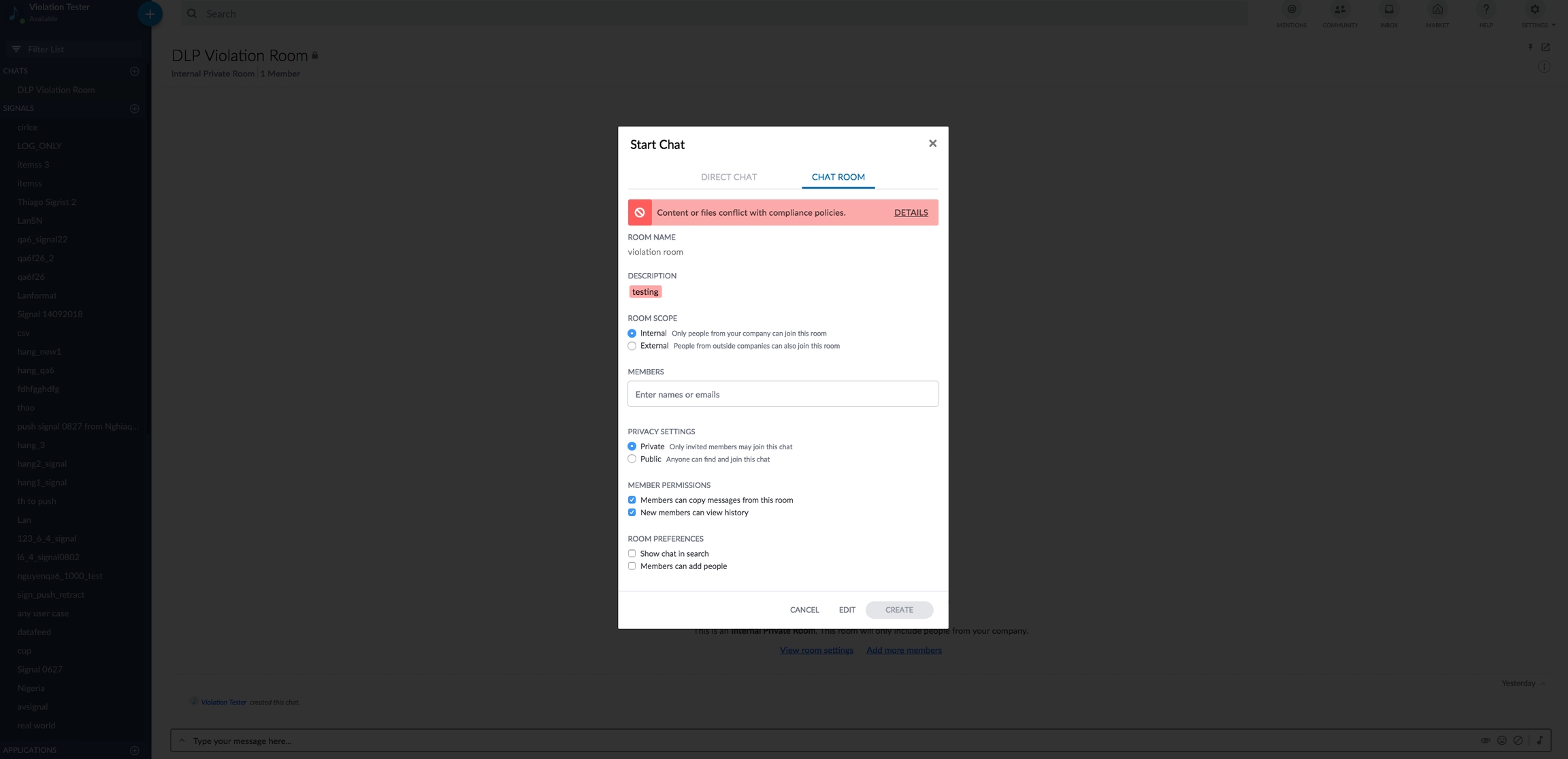

}EFv3 will enforce Stream Metadata Content Policies on a stream's name and description when the stream is either created or updated. In the JSON structure below, the stream data can be viewed in the "stream" structure. The specific word or partial word that caused the violation can be seen in the path "policyResults" → "ruleResults" → "complianceDetail" → "detail" → "matches". "attributeType" specifies whether the violation occurred in the stream name or the stream description.
{
"violations": [{
"violation": {
"enforcementEventID": "STREAM-zv0m+RPzdS5M6QPXuYFskX///pk1GgTFdA==-1541002361716",
"entityID": "zv0m-RPzdS5M6QPXuYFskX___pk1GgTFdA",
"createTime": 1541002361716,
"lastModified": 0,
"requesterId": 7696581544487,
"details": [
{
"status": "WARN",
"policyResults": [
{
"status": "WARN",
"matchedPolicy": {
"id": "5b63fabbcc270c6a25d72de5",
"version": "1.8",
"name": "Lan room degex_block"
},
"ruleResults": [
{
"ruleInstanceId": "e14ee9e1-8097-443b-95cc-21d93d063410",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "TEXT_MATCH",
"ruleName": "",
"ruleDescription": "Rule text match matched"
},
"content": {
"dictionary": {
"id": "5b63fa9f1cd27a318d5590a6",
"version": "1.2"
},
"matches": [
{
"offsetStart": 9,
"offsetEnd": 10,
"match": " ",
"matchPattern": "\\s"
}
]
}
}
}
}
]
}
],
"correlationId": "TEXT",
"attributeType": "ROOM_NAME"
},
{
"status": "BLOCK",
"policyResults": [
{
"status": "BLOCK",
"matchedPolicy": {
"id": "5b6a5f658dd2a670123ed9a1",
"version": "1.4",
"name": "CL_room"
},
"ruleResults": [
{
"ruleInstanceId": "5e6acdd5-0c93-4acc-9323-328ec00799a4",
"type": "EXPLICIT",
"complianceDetail": {
"detail": {
"ruleDescriptor": {
"ruleType": "TEXT_MATCH",
"ruleName": "",
"ruleDescription": "Rule text match matched"
},
"content": {
"dictionary": {
"id": "5b67f44e1cd27a3d4e65c1da",
"version": "1.1"
},
"matches": [
{
"offsetStart": 0,
"offsetEnd": 7,
"match": "testing",
"matchPattern": ""
}
]
}
}
}
}
]
}
],
"correlationId": "DESCRIPTION",
"attributeType": "ROOM_DESCRIPTION"
}
],
"action": "BLOCK",
"outcome": {
"type": "REJECTED_VIOLATION"
},
"version": "V3",
"ignoreDLPwarning": false
},
"stream": {
"name": "violation room",
"creatorPrettyName": "Violation Tester",
"publicRoom": false,
"crossPod": false,
"allowExternal": false,
"creatorId": "7696581544487",
"roomDescription": "testing",
"streamId": "zv0m-RPzdS5M6QPXuYFskX___pk1GgTFdA",
"state": "CREATED",
"type": "ROOM",
"lastDisabled": 0,
"memberAddUserEnabled": false,
"active": true,
"discoverable": false,
"readOnly": false,
"copyDisabled": false,
"externalOwned": false,
"sendMessageDisabled": false,
"moderated": false,
"shareHistoryEnabled": true
}
}],
"nextOffset": ""
}
